Hive Plot Matrix: from_tags

This notebook covers the features and options of HivePlotMatrix.from_tags, which builds one cell per edge tag so that different relationship types can be compared across the same axis layout.

For additional discussion motivating Hive Plot Matrices (HPMs) and the different HPM options, see the Hive Plot Matrices tutorial.

import matplotlib.pyplot as plt
from hiveplotlib import HivePlotMatrix
from hiveplotlib.datasets import example_hpm_nodes_and_edges

We will base this discussion on the following toy dataset:

nodes, edges = example_hpm_nodes_and_edges(
    edge_structure={"social": "intragroup", "informal": "intergroup"},
)

nodes.data.head()

	unique_id	group	value1	value2	value3
0	0	A	2.579853	7.447622	8.894677
1	1	A	1.462928	9.675097	8.236987
2	2	A	2.861993	3.258254	8.550787
3	3	A	2.324560	3.704597	9.216663
4	4	A	0.313924	4.695558	8.782394

edges

hiveplotlib.Edges of 90 edges across 3 tags.

The three edge tags have different patterns in intragroup / intergroup communication: official, social, and informal.

Auto-Detecting Tags

from_tags auto-detects all tags from the Edges object and produces one cell per tag:

hpm = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
)
hpm

hiveplotlib.HivePlotMatrix (1 x 3), 3 populated cells, type='from_tags', backend='matplotlib'

fig, axes = hpm.plot()
plt.show()

In this presentation, we can clearly see that official connections are both intragroup and intergroup while social connections are only intragroup and informal connections are only intergroup.

Controlling Tag Selection and Order

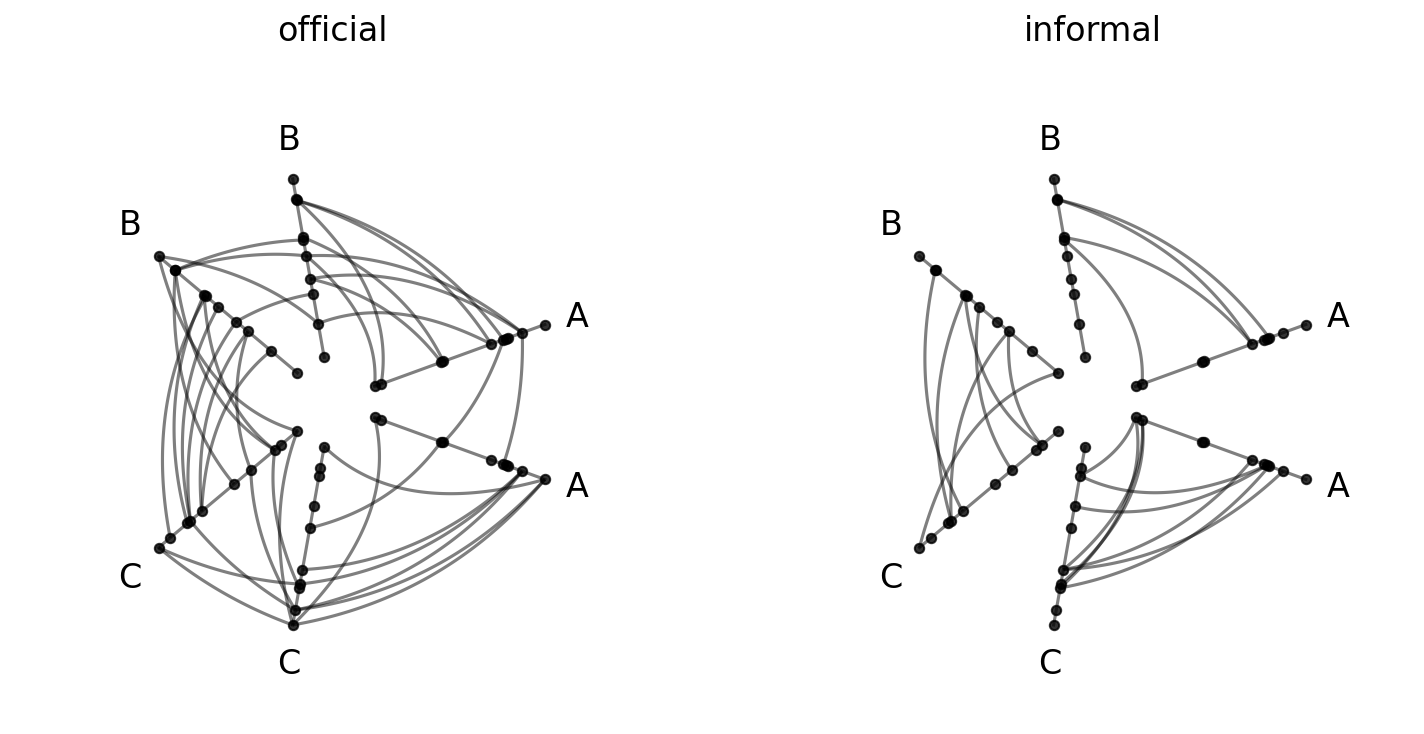

What if we only want a subset of tags, or want to change the display order? The tags parameter lets us do both:

hpm_subset = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    tags=["official", "informal"],
    repeat_axes=True,
)
fig, axes = hpm_subset.plot()
plt.show()

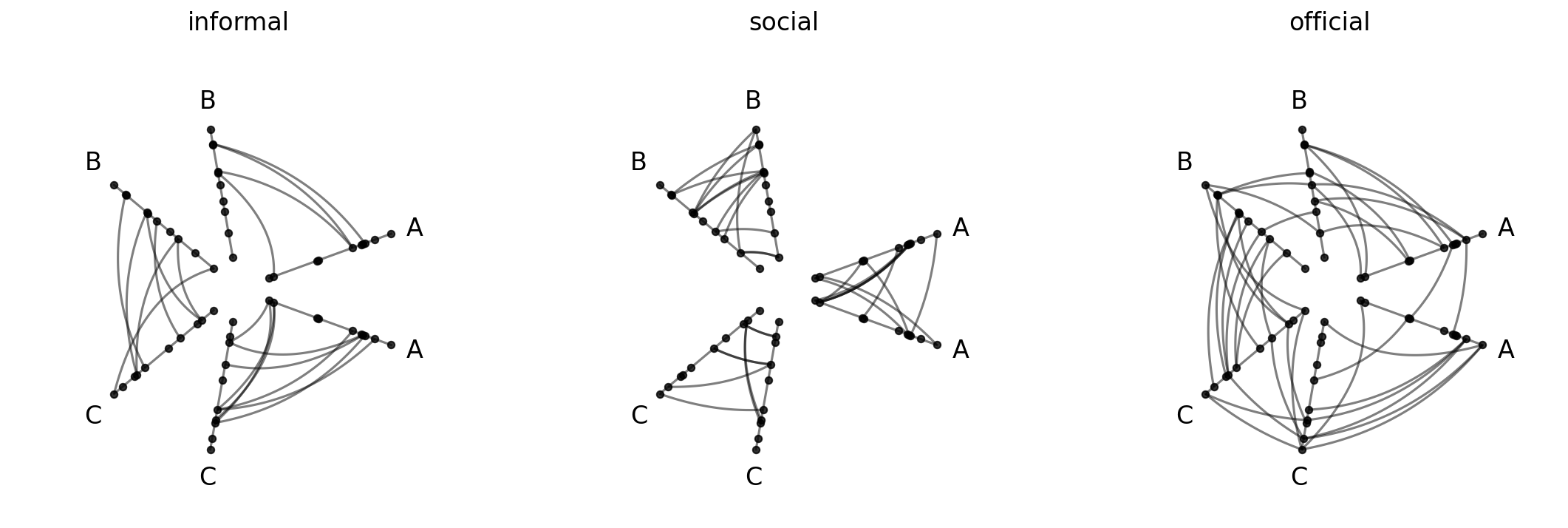

hpm_reordered = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    tags=["informal", "social", "official"],
    repeat_axes=True,
)
fig, axes = hpm_reordered.plot()
plt.show()

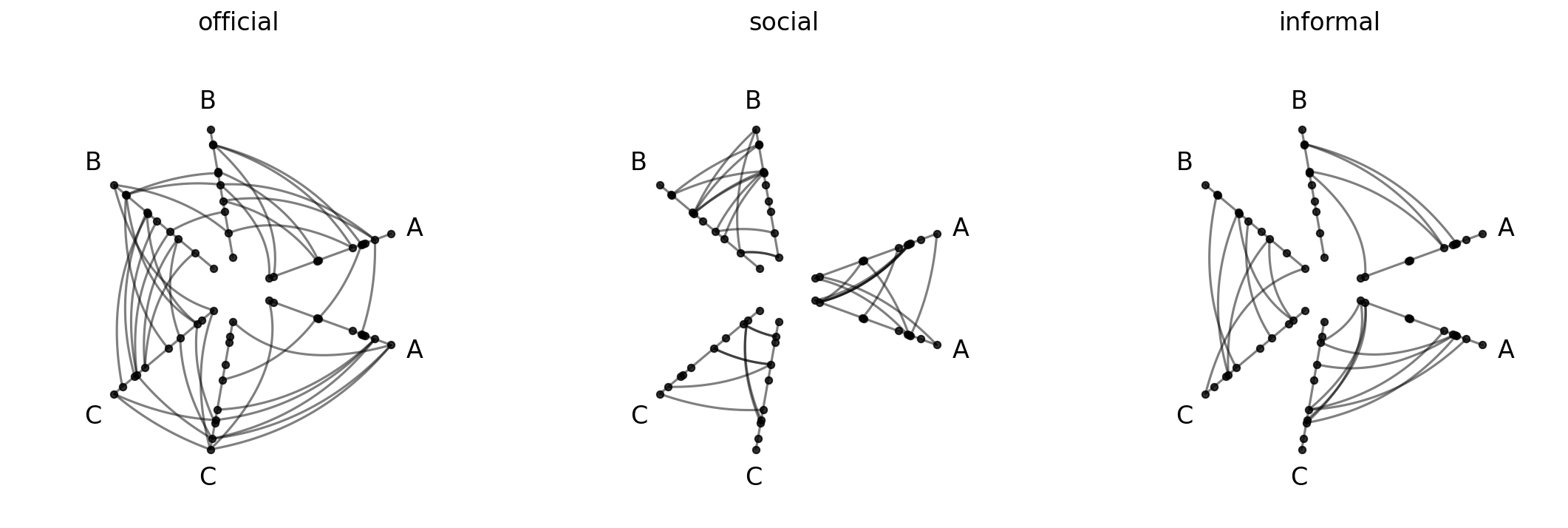

Repeat Axes

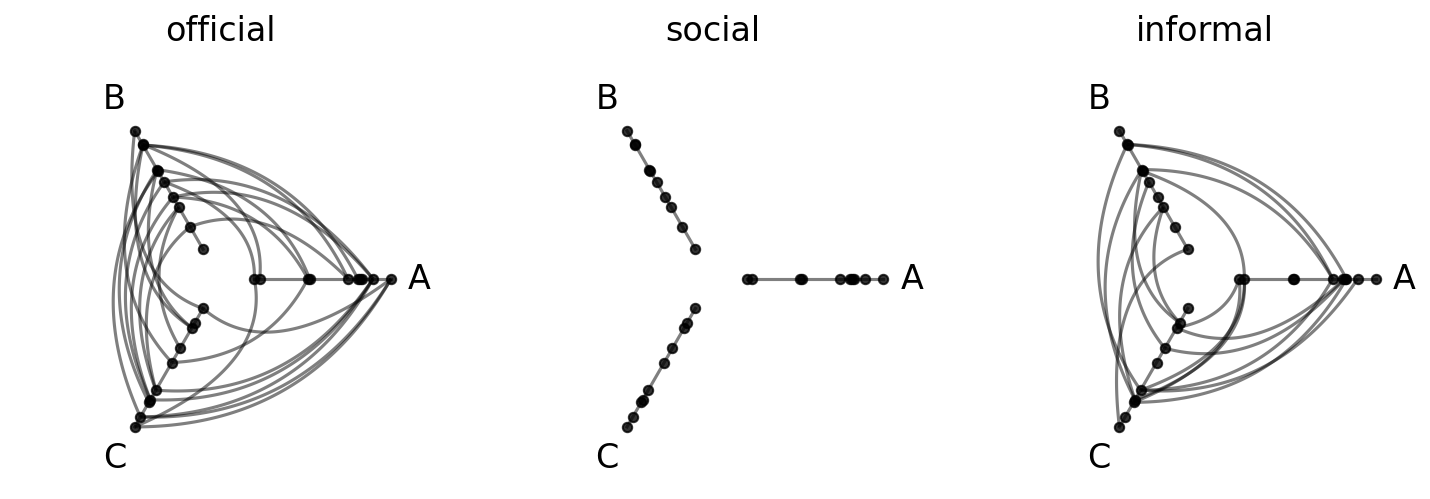

By default (repeat_axes=False), each hive plot shows only intergroup edges.

# default intergroup edges only (repeat_axes=False)
hpm_no_repeat = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
)
fig, axes = hpm_no_repeat.plot()
plt.show()

Setting repeat_axes=True, as we did in the examples above, adds a repeat axis for every group, exposing all intragroup edges as well:

hpm_repeat = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
)
fig, axes = hpm_repeat.plot()
plt.show()

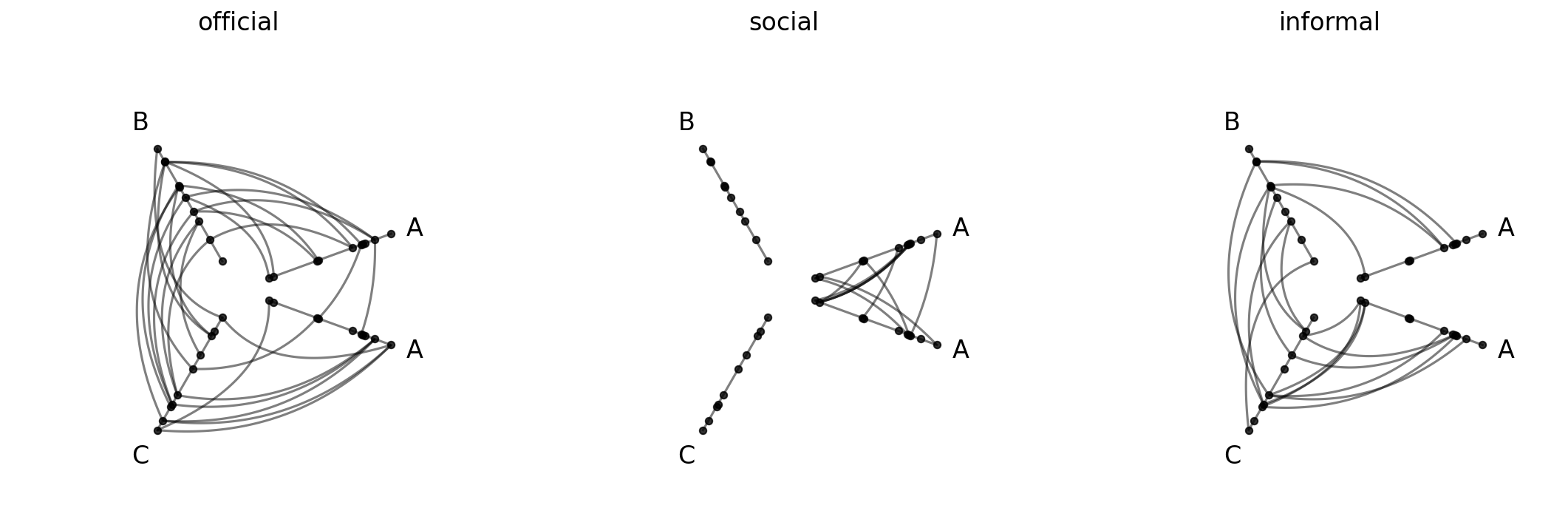

We can also pass a specific group name (or list of names) to add repeat axes selectively:

hpm_partial = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes="A",
)
fig, axes = hpm_partial.plot()
plt.show()

See the Adding Repeat Axes page for more information.

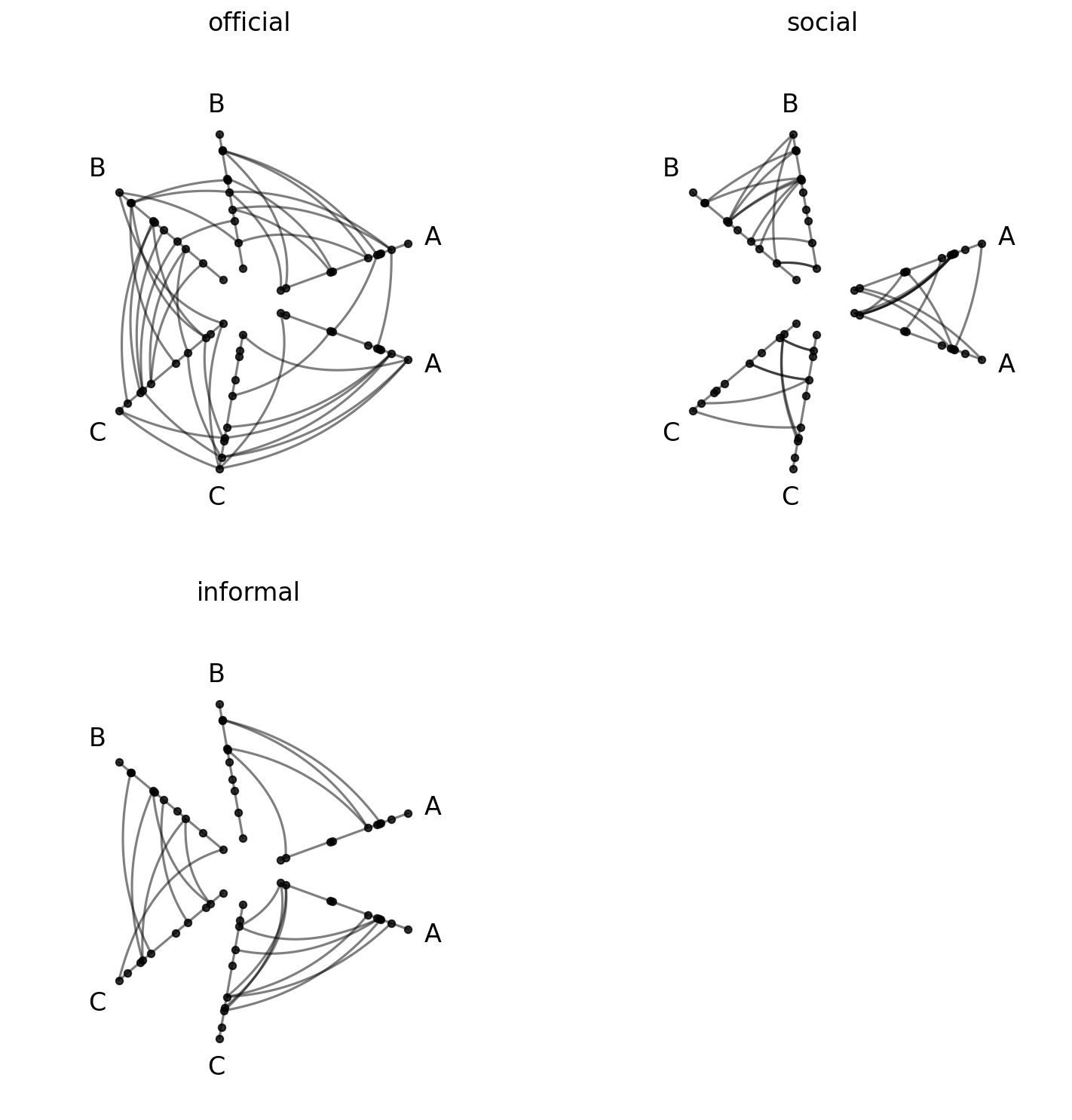

Wrapping with ncols

For longer tag lists, ncols wraps the 1D row into a 2D grid:

hpm_grid = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    ncols=2,
)
hpm_grid

hiveplotlib.HivePlotMatrix (2 x 2), 3 populated cells, type='from_tags', backend='matplotlib'

fig, axes = hpm_grid.plot()
plt.show()

With three cells wrapping into two columns, the last position is None (empty).

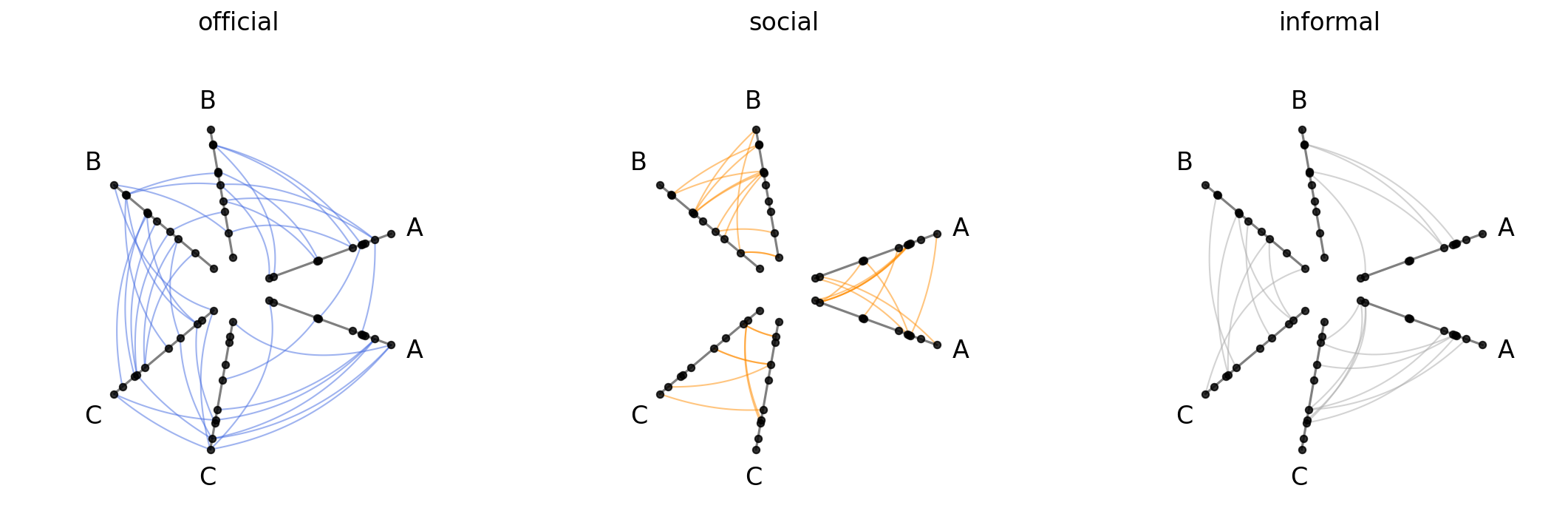

Pre-Styling Tags

Styling applied to Edges tags before HPM construction propagates automatically to each cell in the final HPM. This lets us assign a distinct color, for example, to each relationship type before calling from_tags:

edges_styled = edges.copy()
edges_styled.update_edge_viz_kwargs(
    tag="official", color="royalblue", linewidth=1.0
)
edges_styled.update_edge_viz_kwargs(
    tag="social", color="darkorange", linewidth=1.0
)
edges_styled.update_edge_viz_kwargs(
    tag="informal", color="darkgray", linewidth=1.0
)

hpm_styled = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges_styled,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
)
fig, axes = hpm_styled.plot()
plt.show()

For more on edge styling, see the Multiple Tags of Edge Data and Updating Edges Instance Viz Kwargs pages.

Drilling Down on a Single Hive Plot in an HPM

We can take a copy of a hive plot cell and explore further changes without disrupting the existing HPM. For example, we can switch to an interactive Hiveplotlib-supported back end like bokeh.

Note, however, that the hive plot viz back ends (excluding datashader) plot all tags by default, so we also need to set the tags parameter when plotting below.

Also note the below code will only run if you install Hiveplotlib with the bokeh dependencies:

pip install hiveplotlib[bokeh]

from bokeh.io import output_notebook
from bokeh.plotting import show
from bokeh.resources import INLINE

output_notebook(resources=INLINE)

tag_hp = hpm[0, 1].copy()
tag_hp.set_viz_backend("bokeh")
show(
    tag_hp.plot(
        tags="social",  # must specify `tags` here to plot single tag!
    ),
)

Loading BokehJS ...

If we had found anomalous nodes or edges, for example, we could use the hover tool support with the bokeh back end to find the relevant node or edge IDs.

Unified Axis Scaling with unify_axes

By default, each hive plot axis auto-scales to the data range of the nodes assigned to it by setting unify_axes=False. Since different axes correspond to different partition groups, it is almost certainly true that different axes have different absolute ranges. Since all cells share the same nodes and axis layout, though, the range of a single axis across hive plots will be consistent (e.g. axis A has the same range on all of the previous hive plots we’ve seen above).

Although this default behavior can be useful, especially if we want to use the full range of each axis to place nodes, it requires careful interpretation across axes. Here, if we see an edge from high A values to high C values, “high” is only within group.

If we want the relative position of nodes across axes to matter, we can pass unify_axes=True to auto-compute a single global vmin / vmax from all node data and apply it to each axis.

hpm_fixed_axes = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    unify_axes=True,
    repeat_axes=True,
)
fig, axes = hpm_fixed_axes.plot()
plt.show()

Here we can see that nodes on the A axis with high within-group values according to the current sorting variable actually have low values relative to the rest of the network (e.g. the C axis nodes).

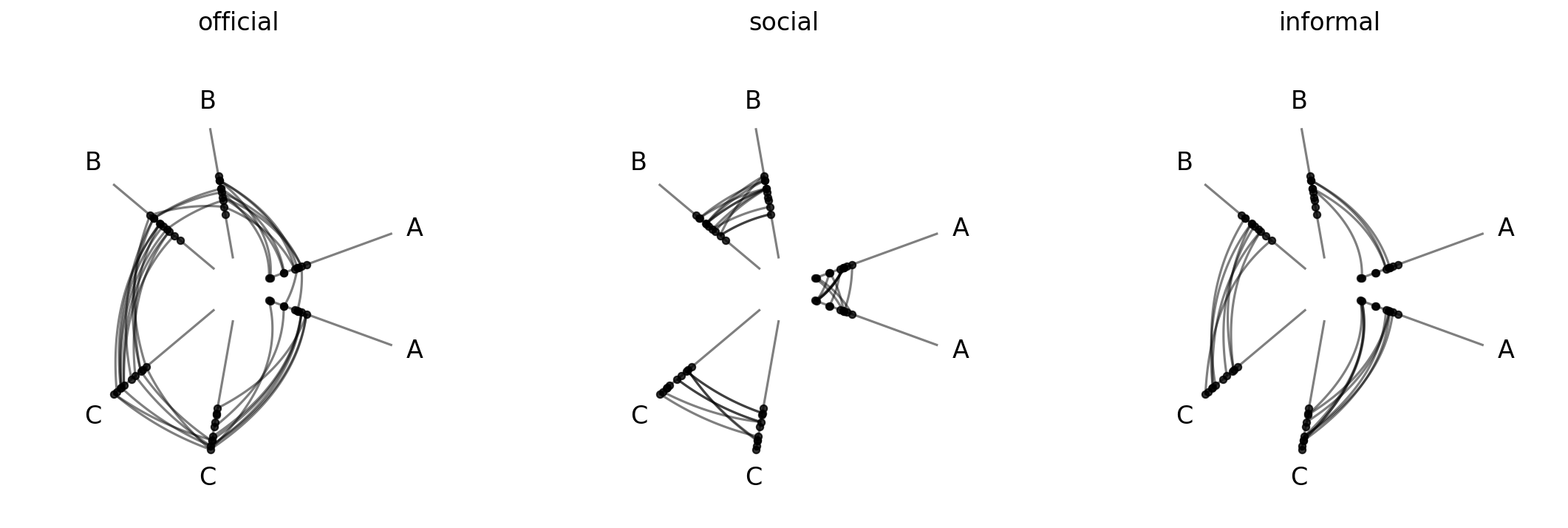

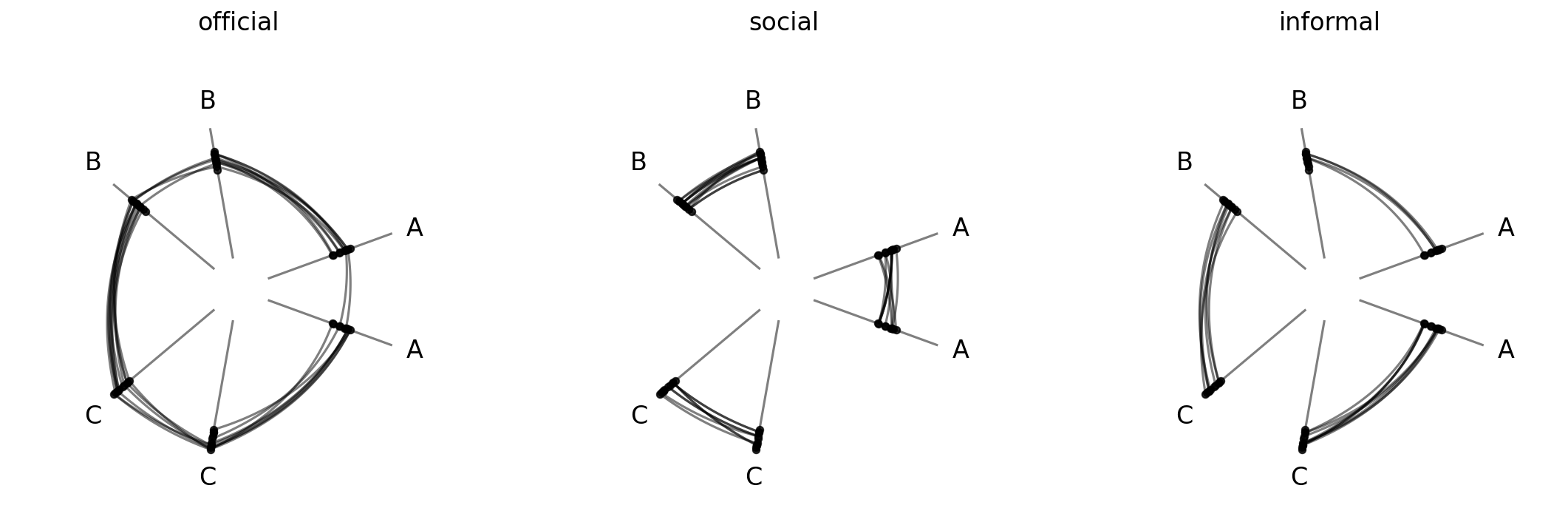

Set a Specific Range for Unified Axes

To force a specific range instead of auto-computing, we can pass a dictionary with vmin and / or vmax. Missing keys are auto-computed to the global min / max of the data.

This can be helpful if there are outliers or if there are important threshold values for a given sorting variable.

# pin vmin to -10, auto-compute vmax from the data
hpm_fixed_axes = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    unify_axes={"vmin": -10},
)
fig, axes = hpm_fixed_axes.plot()
plt.show()

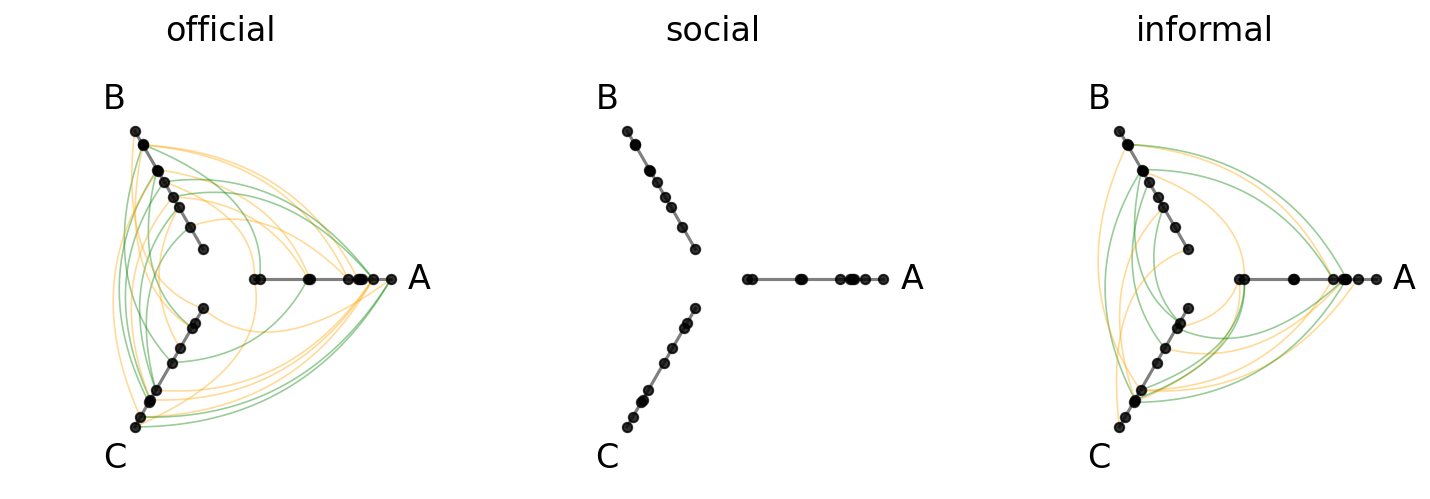

Styling Directed Edges

If we are working with a directed network (e.g. an edge from \(i\) to \(j\) is not the same as an edge from \(j\) to \(i\)), then clockwise_edge_kwargs / counterclockwise_edge_kwargs allow us to see edges by direction:

hpm_directed = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    all_edge_kwargs={"alpha": 0.4},
    clockwise_edge_kwargs={"color": "orange", "linewidth": 0.8},
    counterclockwise_edge_kwargs={"color": "green", "linewidth": 0.8},
)
fig, axes = hpm_directed.plot()
plt.show()

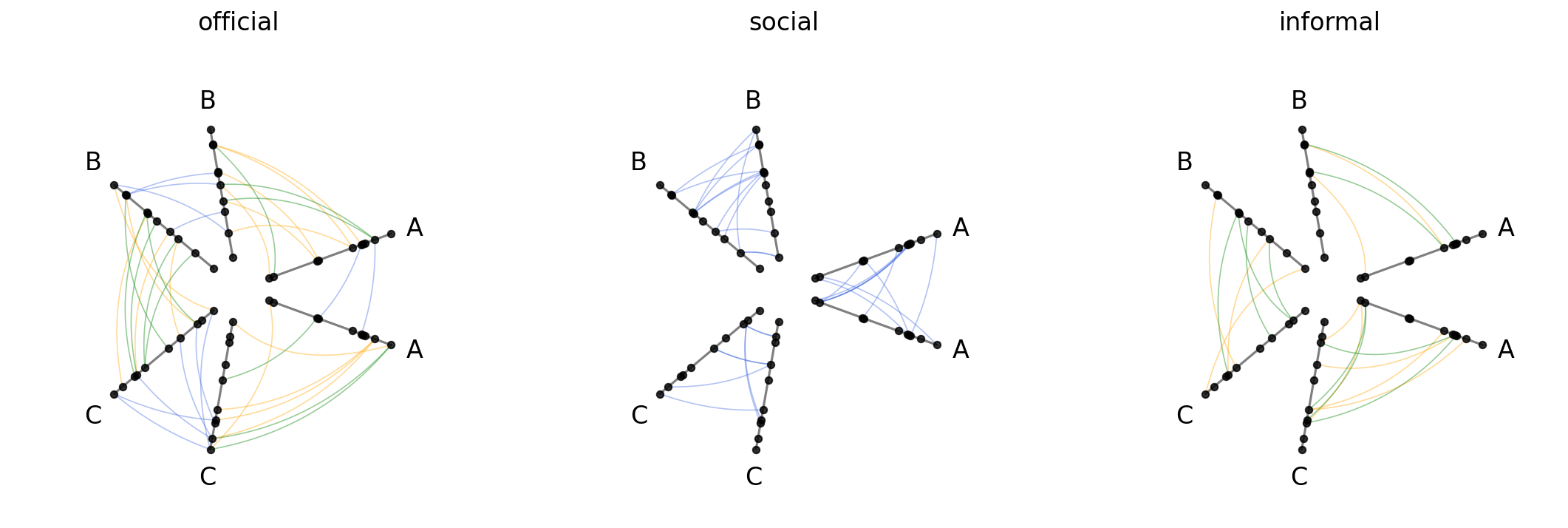

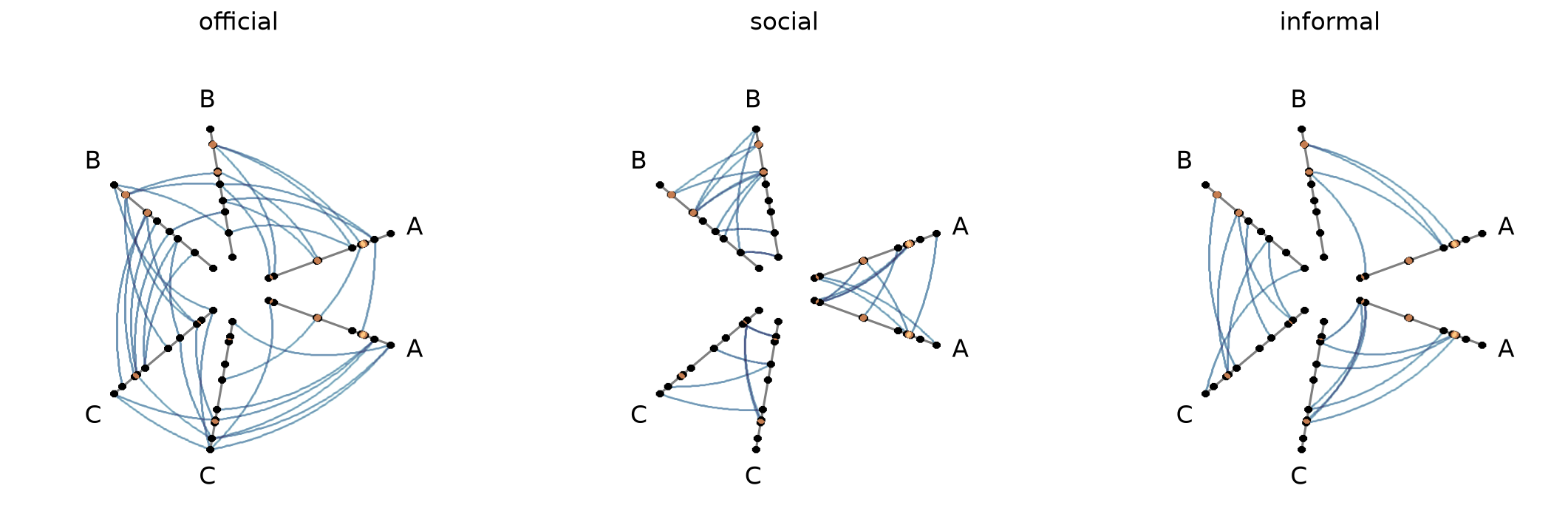

Repeat Edge Styling

repeat_edge_kwargs targets intragroup edges, which have no meaningful directionality since both endpoints belong to the same group:

hpm_directed_repeat = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    all_edge_kwargs={"alpha": 0.4},
    clockwise_edge_kwargs={"color": "orange", "linewidth": 0.8},
    counterclockwise_edge_kwargs={"color": "green", "linewidth": 0.8},
    repeat_edge_kwargs={"color": "royalblue", "linewidth": 0.8},
)
fig, axes = hpm_directed_repeat.plot()
plt.show()

For a full explanation of edge kwarg options and prioritization, see the Changing Edge Keyword Arguments page.

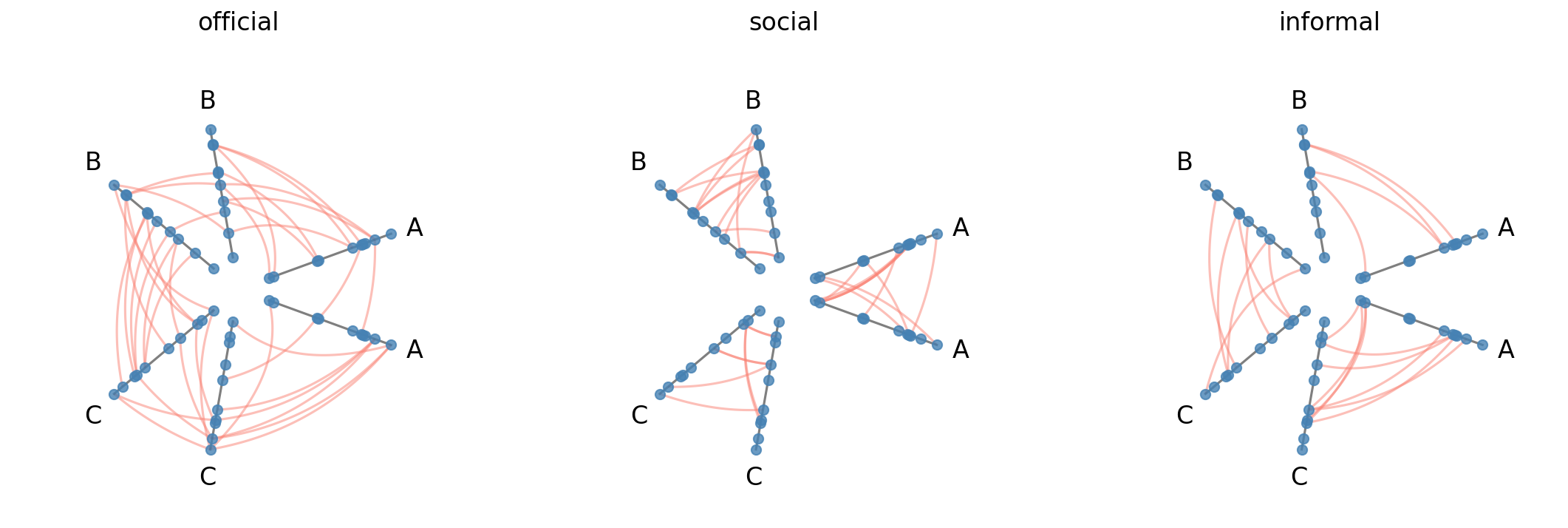

Uniform Node and Edge Rendering

node_kwargs and all_edge_kwargs apply rendering options uniformly across every cell at construction time. Node and edge kwargs can also be passed to .plot() to override them at render time.

hpm_uniform = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    node_kwargs={"s": 40, "color": "steelblue"},
    all_edge_kwargs={"color": "salmon", "alpha": 0.5},
)
fig, axes = hpm_uniform.plot()
plt.show()

For a full explanation of edge kwarg options and prioritization, see the Changing Edge Keyword Arguments page.

When NOT to Use from_tags

from_tags assumes a fixed, shared node set: every cell receives the same NodeCollection. This is correct when tags represent different relationship types among the same actors, but wrong when tags correspond to different network snapshots where the active node set changes (e.g. year-by-year slices). For per-snapshot comparisons, we should instead build independent HivePlot instances and use the generic constructor.

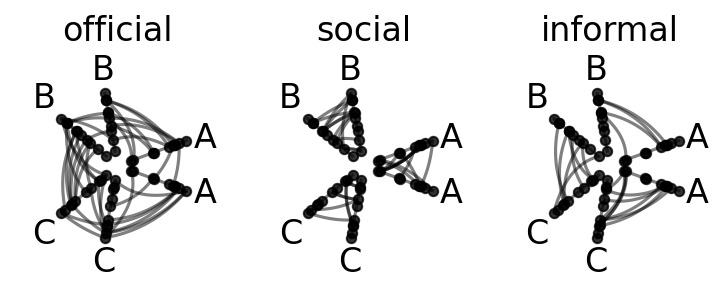

Plot Options

The plot() method accepts several keyword arguments to control figure appearance. For example, we could change the figure size:

# figsize: override the default auto-computed size
fig, axes = hpm.plot(figsize=(6, 3))
plt.show()

Visualization Back Ends

Two visualization back ends are supported with HPMs: matplotlib (default) and datashader. The back end is set at construction time via the backend parameter.

print("Current back end:", hpm._backend)

Current back end: matplotlib

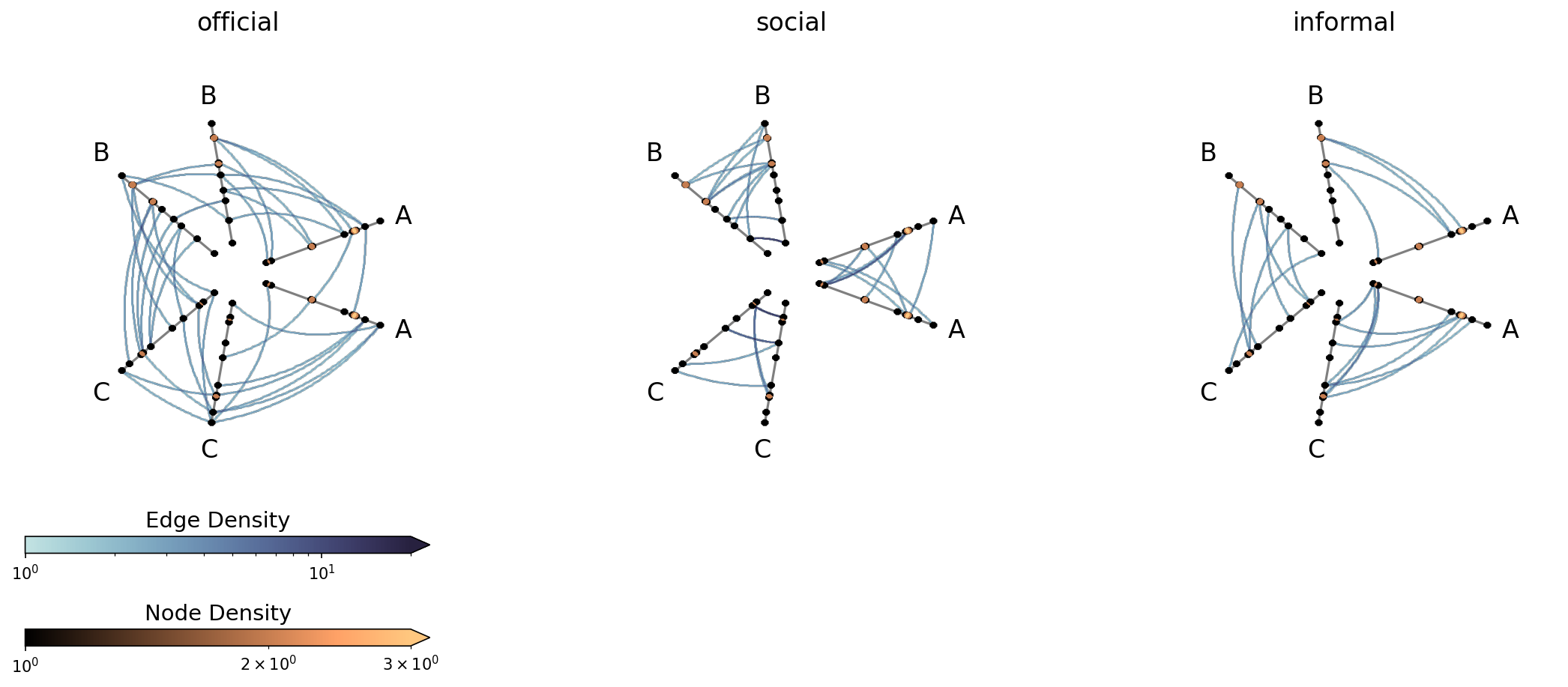

Datashader Back End

Datashader renders rasterized density images with shared colorbars across all cells. This requires that hiveplotlib be installed with the datashader dependencies via:

pip install hiveplotlib[datashader]

For more on constructing hive plots with datashader, see the Hive Plots for Large Networks and Datashader pages.

Note that while the matplotlib back end only returns the figure and axes, here the plot() call also returns the node / edge rasterizations.

hpm_ds = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    backend="datashader",
)
# datashader plot also returns node / edge rasterizations
fig, axes, im_nodes, im_edges = hpm_ds.plot()
plt.show()

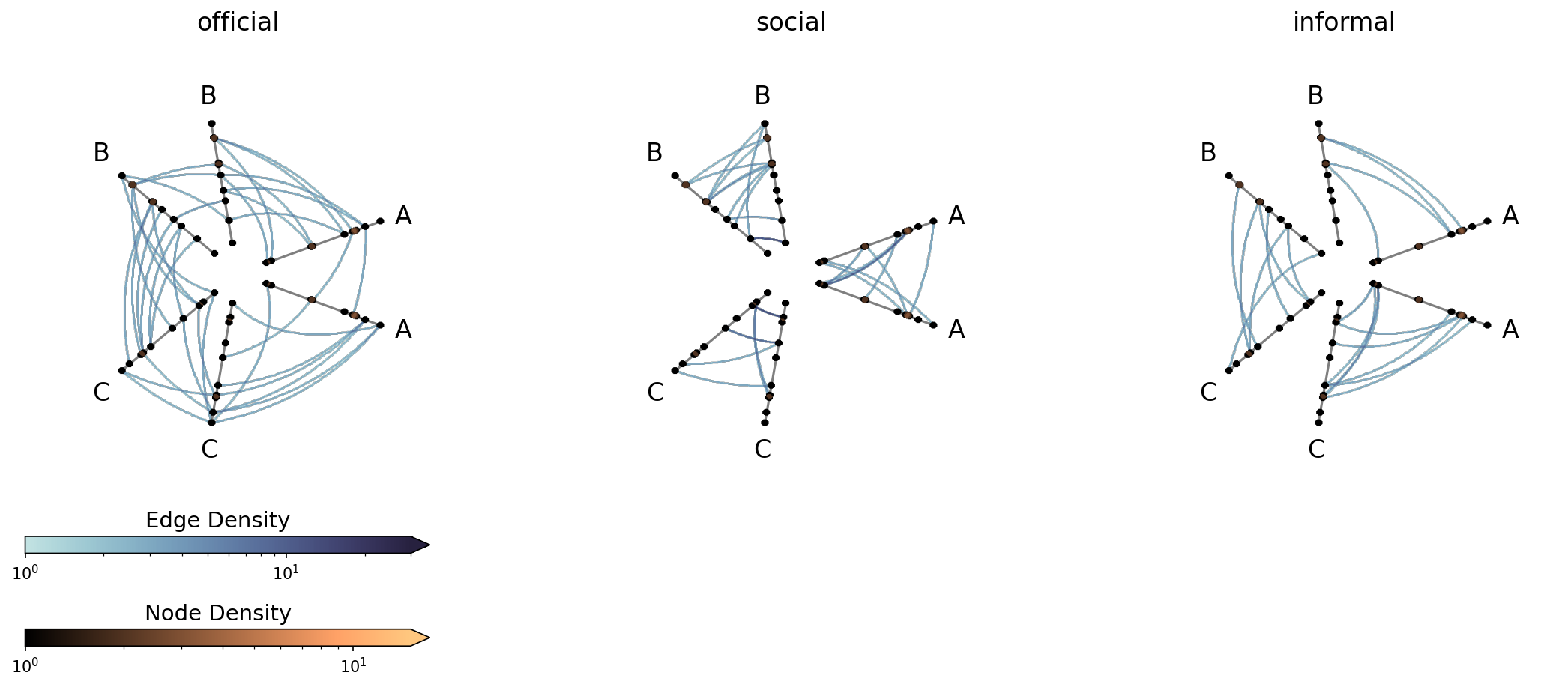

Setting Explicit Density Cutoffs with Datashader

The node and edge density colormaps and color range will be the same for all hive plots in the HPM.

By default, the max color range for each will top out at the maximum density value over all of the hive plots.

If preferred, users can set vmax_nodes and vmax_edges to fix the shared density max across all cells to a specific level. This can be useful when one cell is much denser than the others or if users have preferred, more-interpretable cutoffs.

fig, axes, im_nodes, im_edges = hpm_ds.plot(vmax_nodes=15, vmax_edges=30)
plt.show()

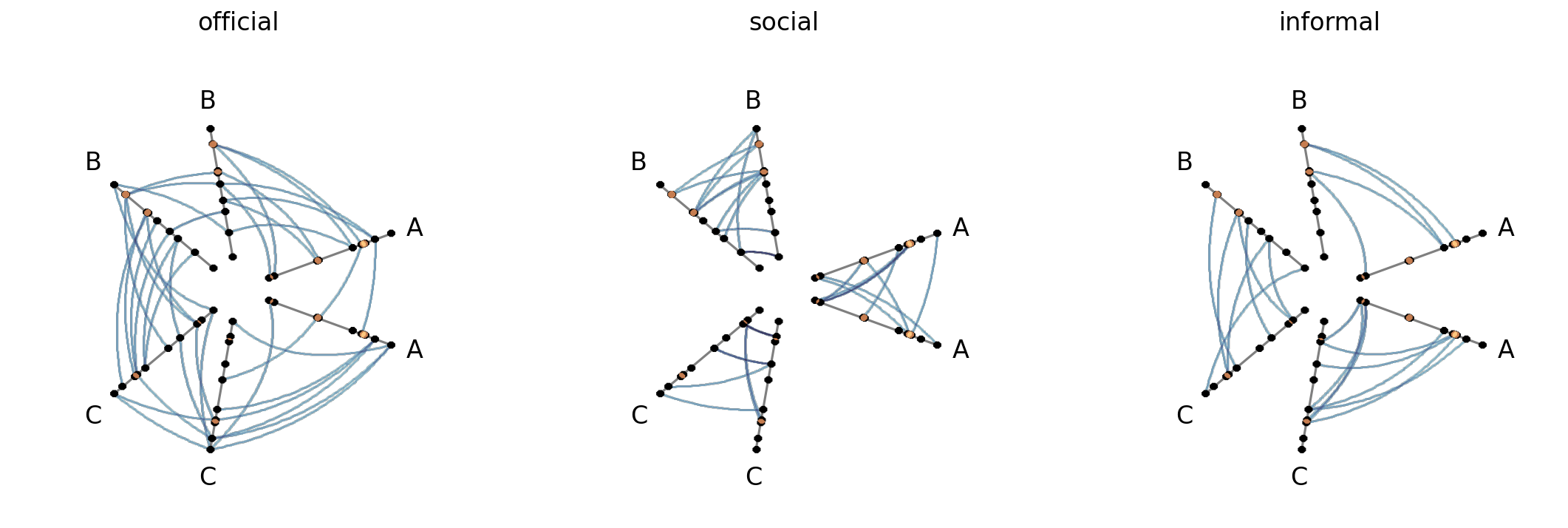

Turn Off Density Colorbars with Datashader

Users can turn off one or both node / edge colorbars that show up by default by setting show_node_colorbar / show_edge_colorbar to False (both default to True).

fig, axes, im_nodes, im_edges = hpm_ds.plot(
    show_node_colorbar=False,
    show_edge_colorbar=False,
)
plt.show()

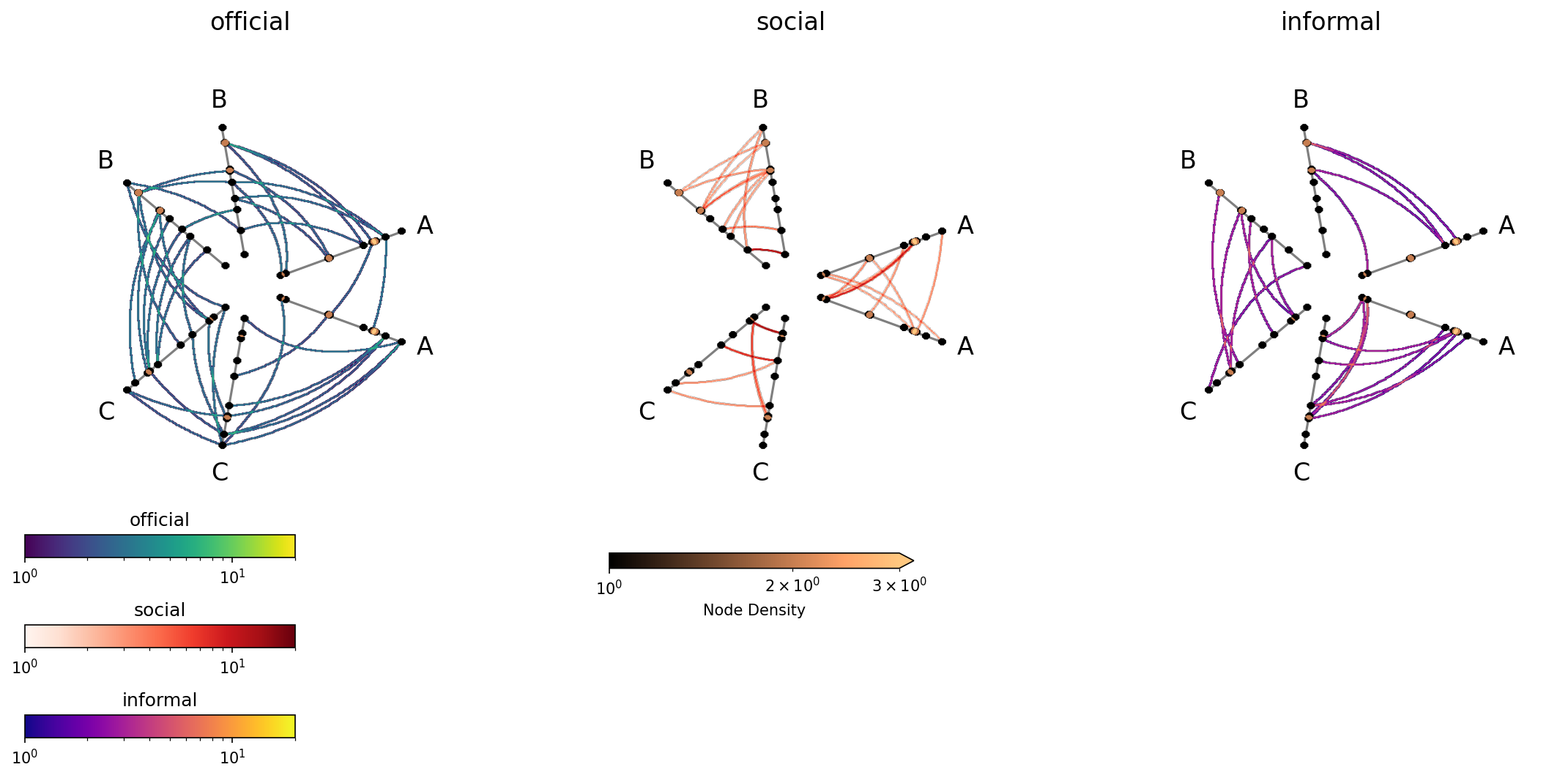

Changing Per-tag Datashader Colormaps

With the per_tag_plot_kwargs parameter, users can update color parameters for each tag of edges.

In this situation, the automatic edges colorbar won’t fill in (since there will no longer be one colorbar representing all edges in the same way), but we can still manually make the colorbars, as we demonstrate below.

tag_list = edges.tags
cmaps = ["viridis", "Reds", "plasma"]

hpm_per_tag = HivePlotMatrix.from_tags(
    nodes=nodes,
    edges=edges,
    partition_variable="group",
    sorting_variables="value1",
    repeat_axes=True,
    backend="datashader",
    per_tag_plot_kwargs={
        tag: {"cmap_edges": cmap}
        for tag, cmap in zip(tag_list, cmaps, strict=True)
    },
)
fig, axes, im_nodes_dict, im_edges_dict = hpm_per_tag.plot()

# custom colorbars for each tag
ax0 = axes[0, 0]
for i, tag in enumerate(tag_list):
    cax = ax0.inset_axes(
        [0, -0.1 - 0.2 * i, 0.6, 0.05], transform=ax0.transAxes
    )
    cb = fig.colorbar(im_edges_dict[0, i], cax=cax, orientation="horizontal")
    cb.ax.set_title(tag)

plt.show()

For a deeper dive into other Hive Plot Matrix convenience methods, see the HivePlotMatrix Gallery Examples.
